Description
- Direction: None
- Security Mode: Fail Safe with Signal
- Model Number: TM-DALAS
- Brand Name: LUCKING DOOR
- Certification: CE,FCC,RoHS
- Input voltage: DC12V±20%
- Quiescent current: ≤17mA
- Wiegand: 26-44
- Touch memory reader: DS1990A
- Electric lock output current: ≤3A (Relay output)
- User Capacity: 1000
- Unlock time: 1~128s
- Manager cards: 2 cards
- Communication distance to Wiegand reader: ≤100m
- Communication distance to Touch memory reader: ≤15m
- Operating temperature: -35~60℃
- Max humidity: ≤90%,ROH
- PCBA dimension: 48X32X14mm
12V Access control Mini Relay Module Controller Board Kit TM Wiegand RFID Card Reder Set Door System support Admin Card 1000user
Product Introduction

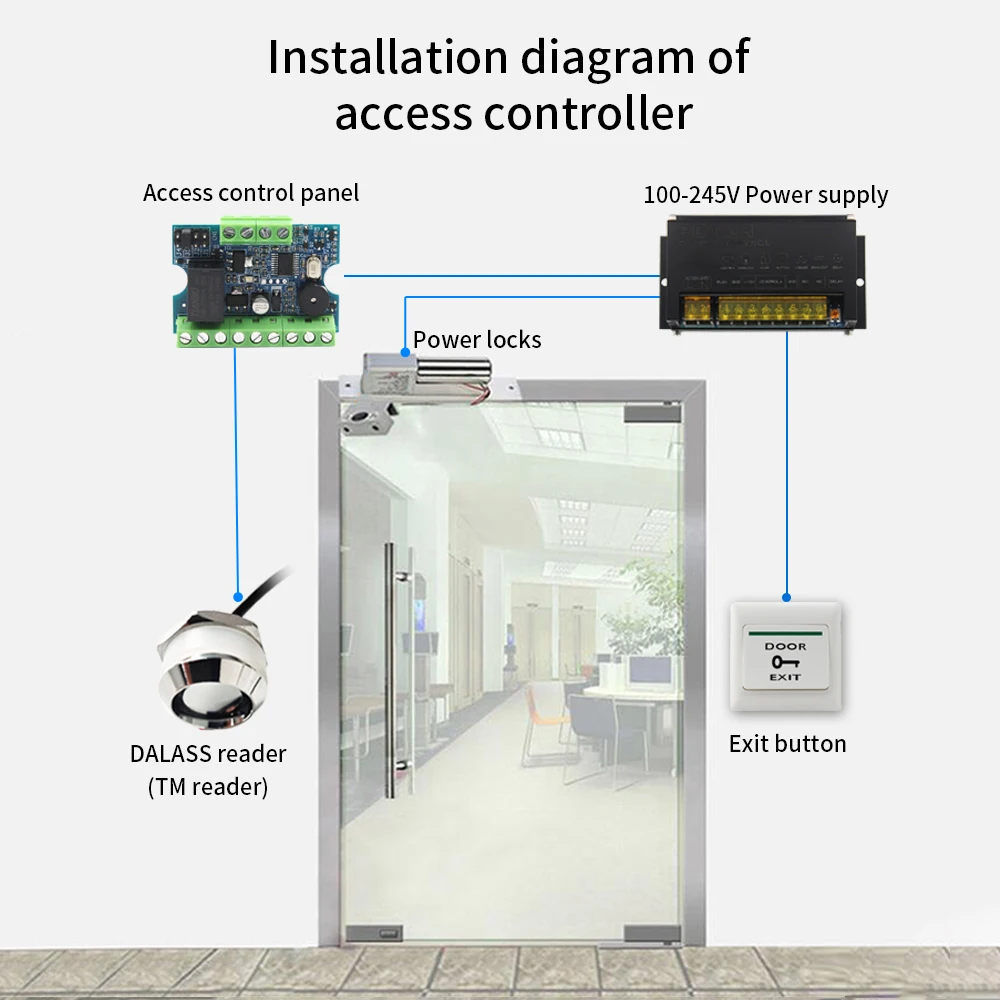

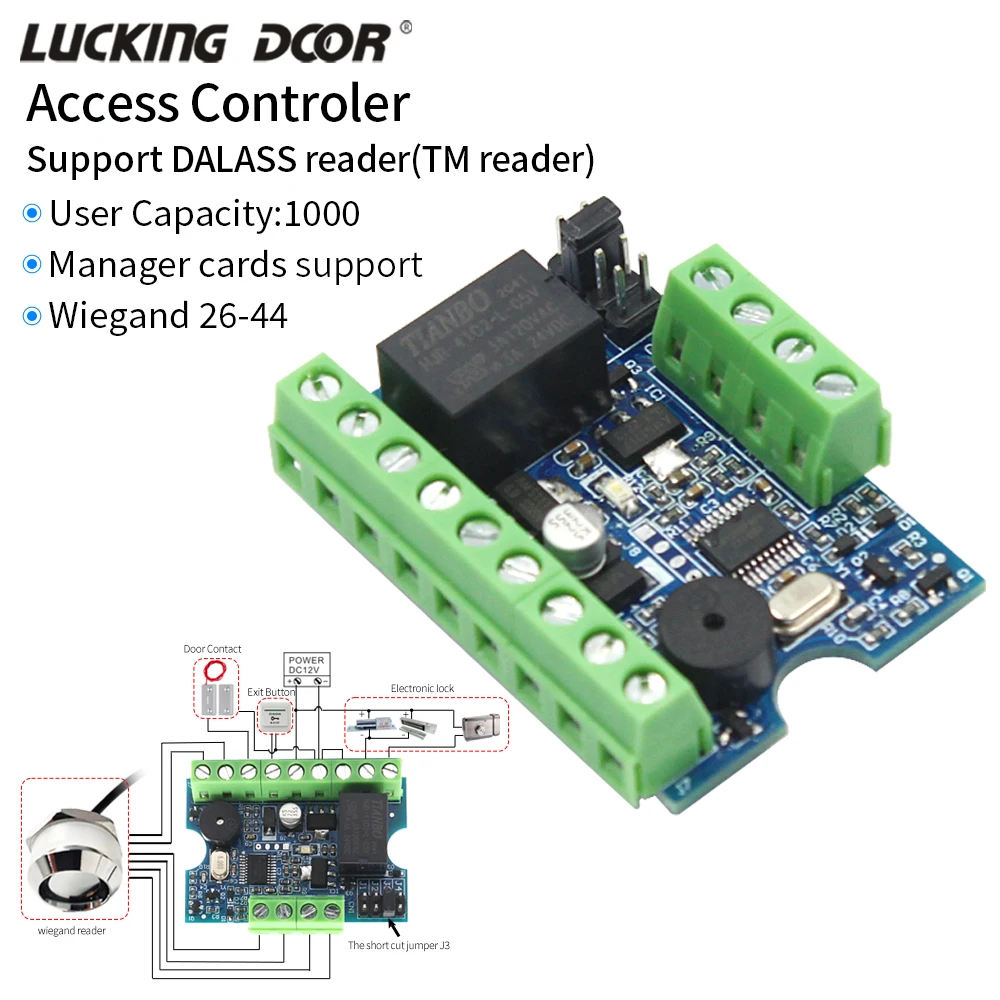

This access control is standalone access control which designed for single door. Support 1000 users and could connect to external Wiegand 26-44 RFID reader or Touch memory reader.

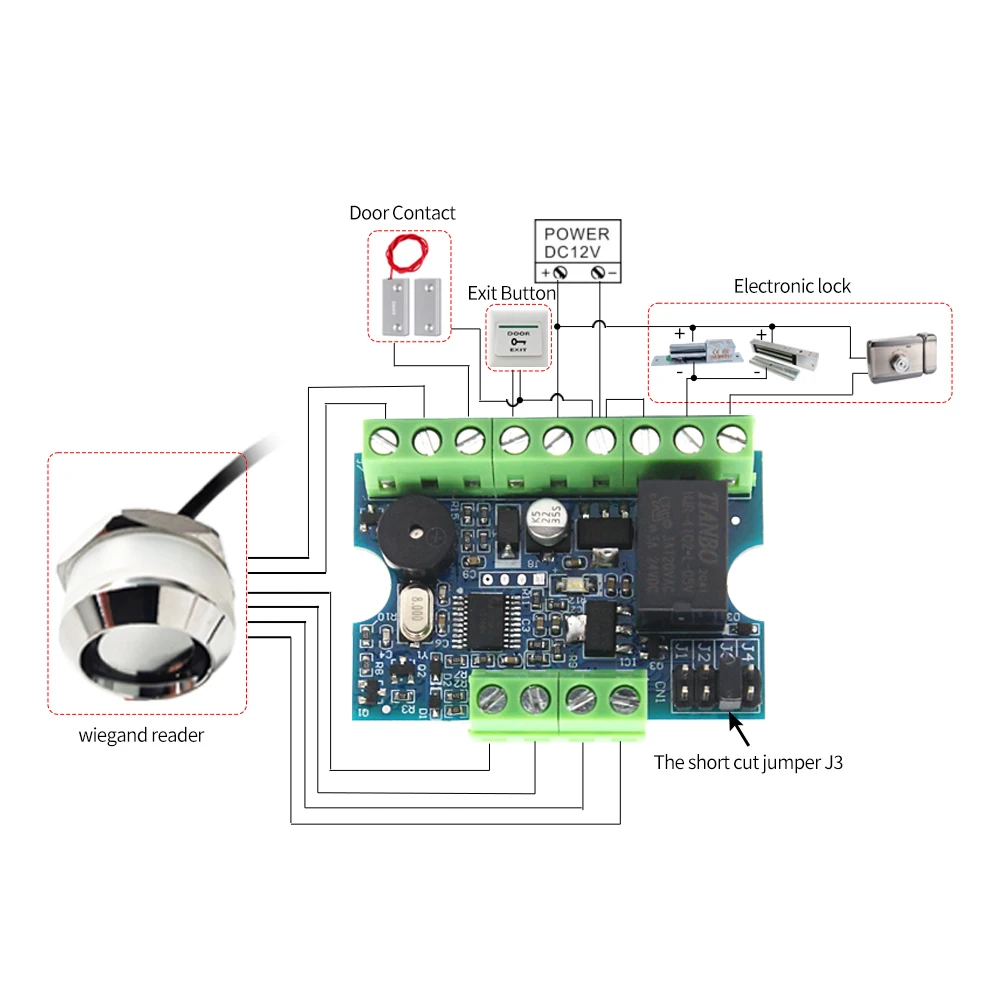

It has two manager cards and could connect to any kinds of locks and exit button. Easy installation and operation.
Technical parameters
Input voltage: DC12V±20%
Quiescent current: ≤17mA
Wiegand 26-44
Touch memory reader:DS1990A
Electric lock output current: ≤3A (Relay output)
User Capacity:1000
Unlock time: 1~128s
Manager cards: 2 cards
Communication distance to Wiegand reader: ≤100m
Communication distance to Touch memory reader: ≤15m
Operating temperature: -35~60℃
Max humidity: ≤90%,ROH

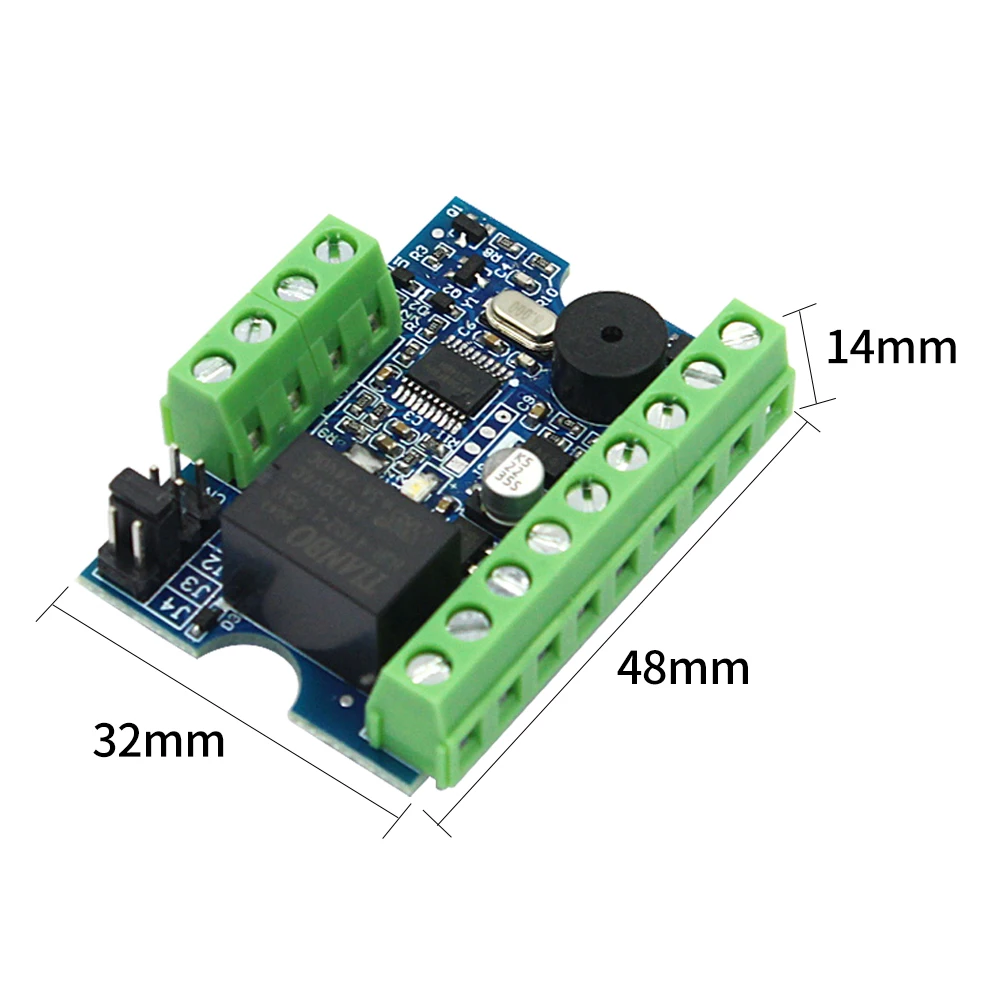

PCBA dimension: 48×32×14mm
