Description
- Hign-concerned Chemical: None
- Model Number: Air conditioner thermostat
- Wattage: other
- Certification: CE

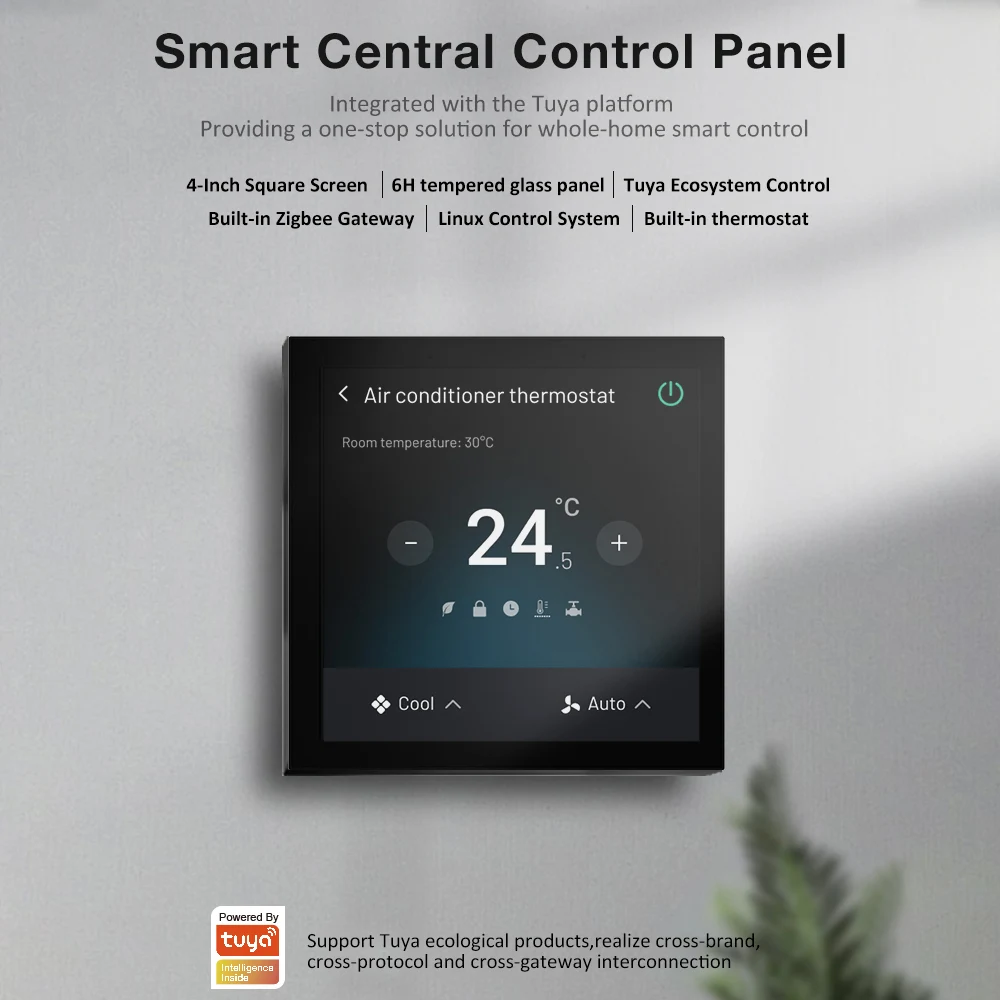

2025 New WiFi Smart Home Smart Central Control Panel Bluetooth Zigbee Temperature Controller Air conditioner Thermostat
Please note:5 types Optional!!! Please read carefully before placing an order!!!

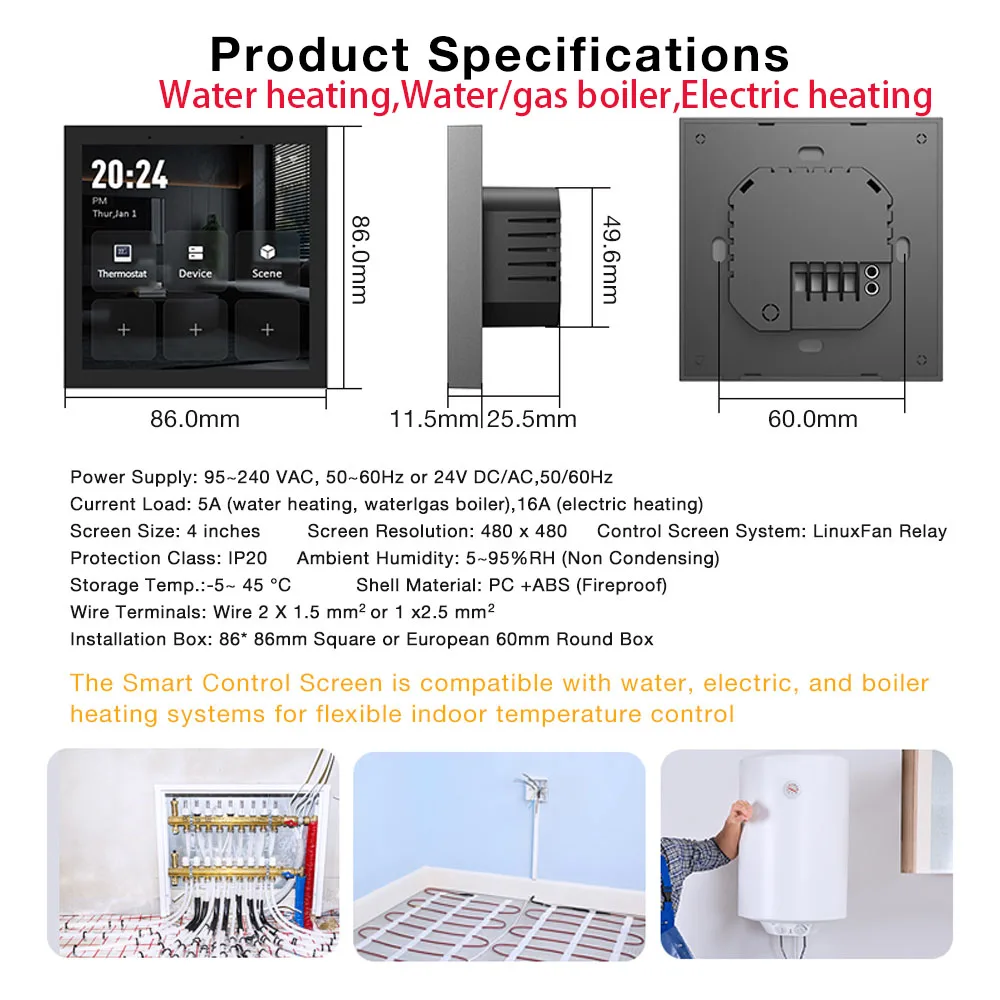

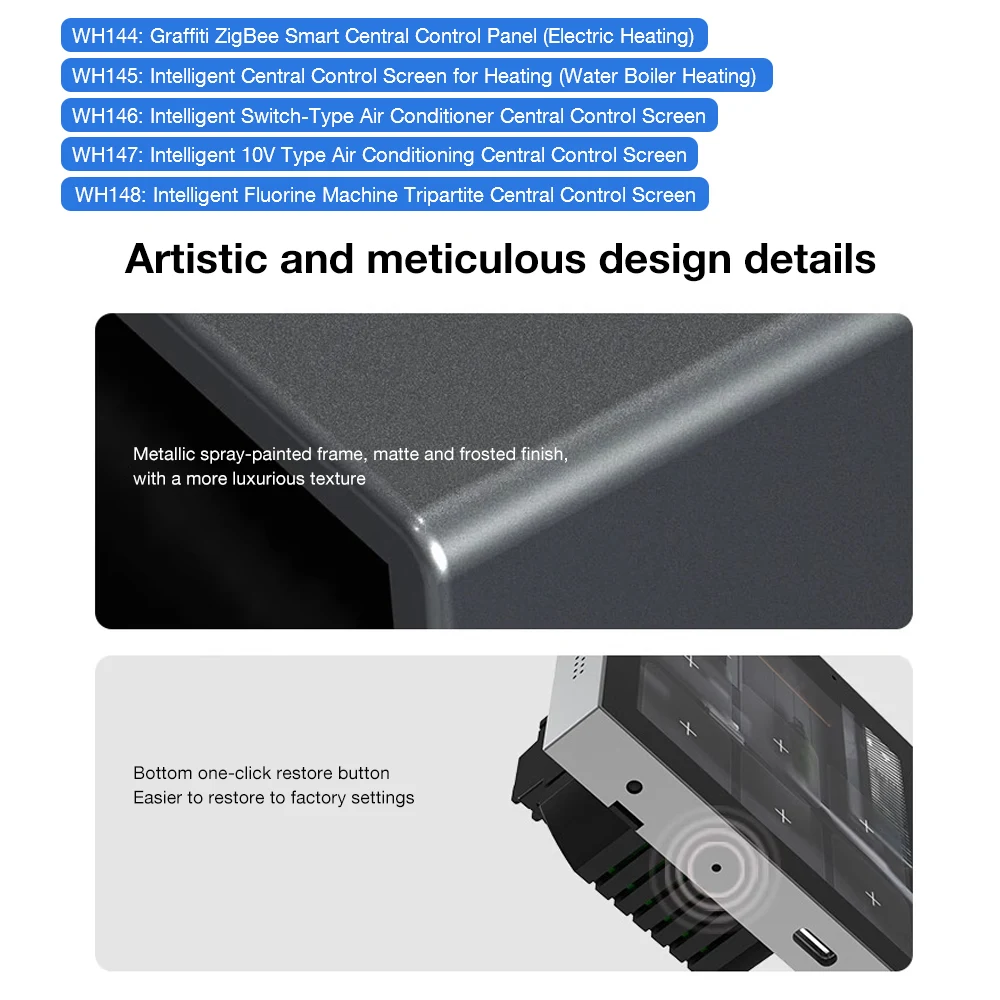

①Electric Heating 16A: Tuya ZigBee Smart Central Control Panel
②Water Gas Boiler 5A : Intelligent Central Control Screen for Heating

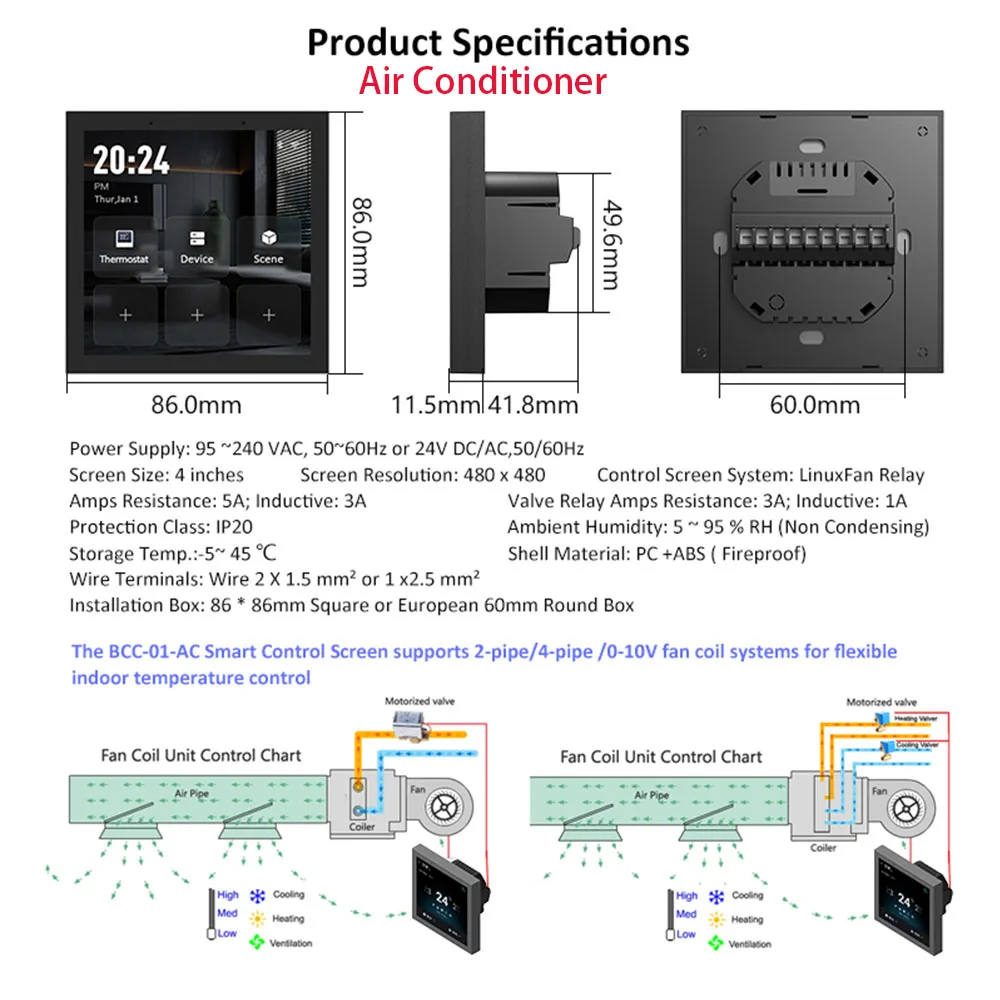

③Air Conditioner: Intelligent Switch-Type Air Conditioner Central Control Screen(2-pipe or 4-pipe systems. Maximum 5A for fans, maximum 3A for valves.)
④10V Air Conditioner: Intelligent 10V Type Air Conditioning Central Control Screen（2-pipe, 3-speed fan max 5A, 0-10V valve (0-20mA)）
⑤3 in 1:Switch type, 0-10V, VRV air conditioning 3in 1 Central Control Screen
Specification:

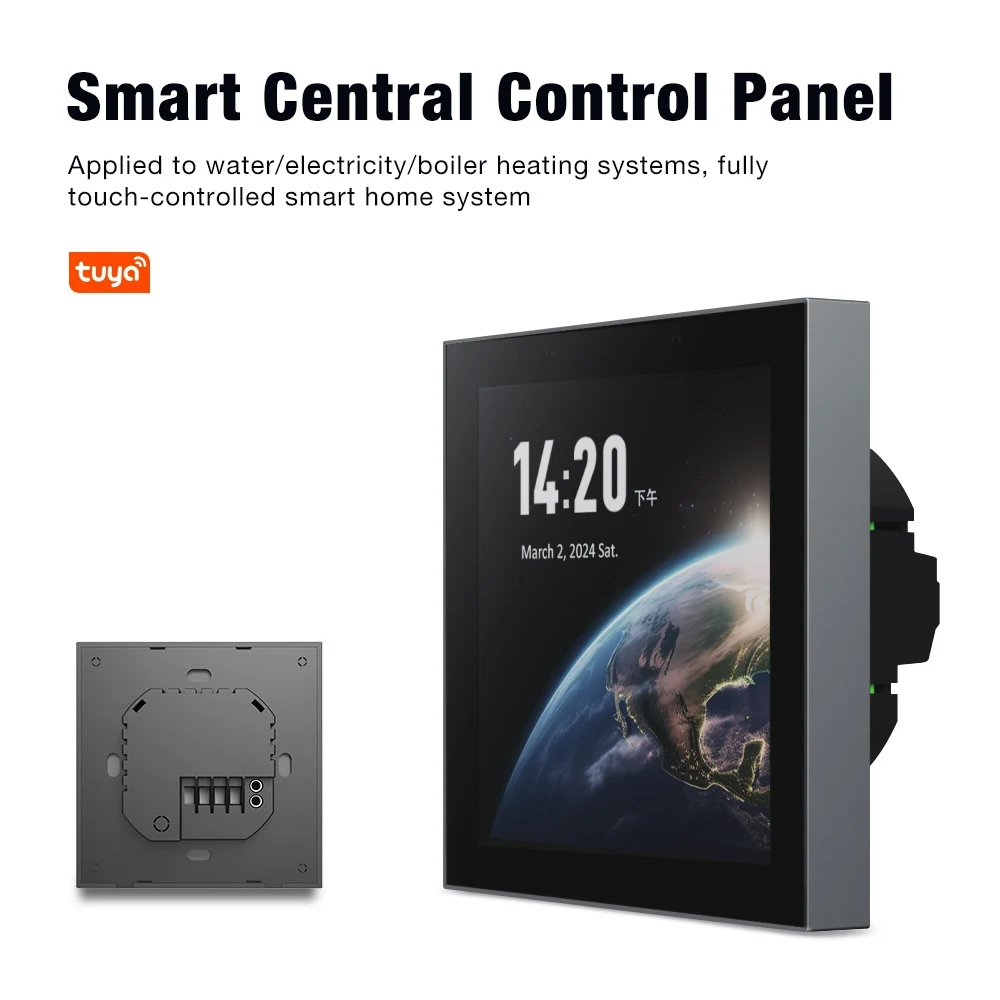

●Product name:Smart Control Panel
●Screen size:4 inches
●Input:95 ~240 VAC, 50/60Hz
●Wireless protocol:Wi-Fi,Bluetooth,Zigbee
●Ambient Temp.:-5℃-45℃
●Ambient Humidity:5 ~ 95 % RH (Non Condensing)
●Features WiFi, Zigbee, and 485 Modbus connectivity
●Includes built-in sensors with support for external sensors

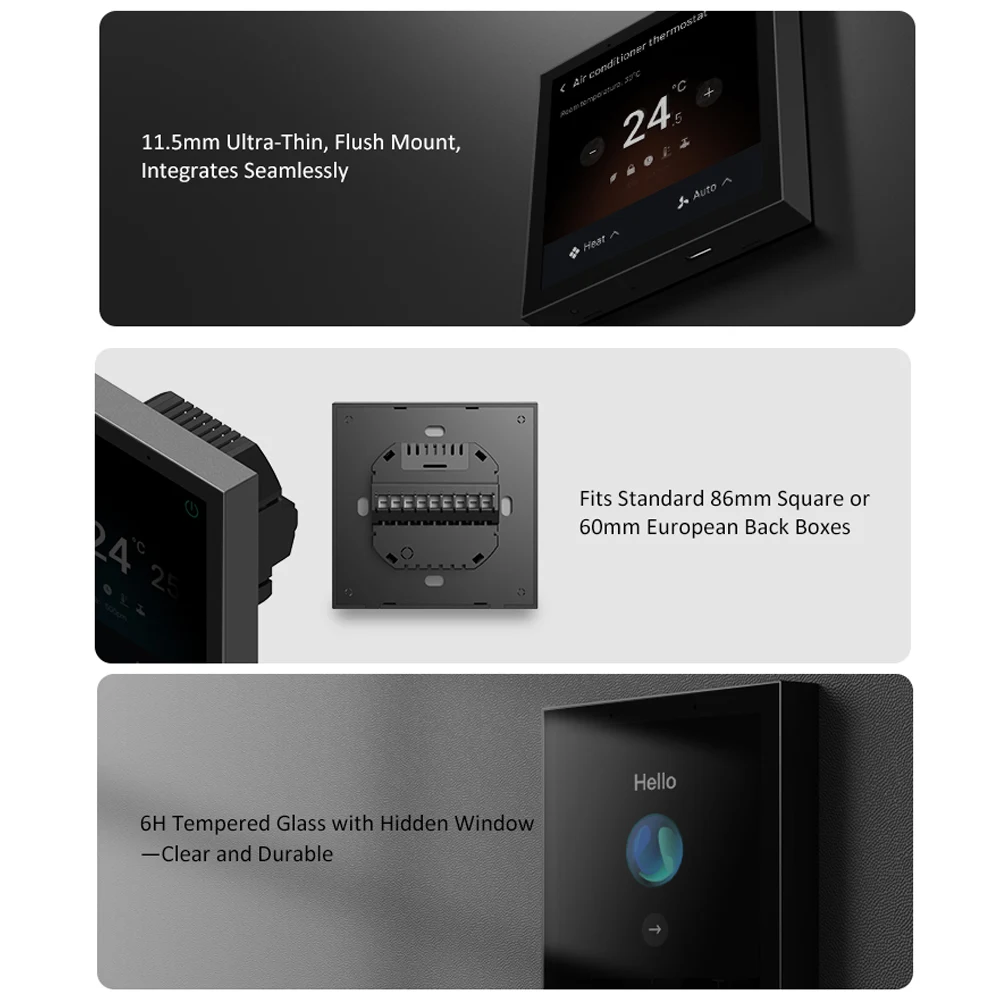

●Product size:86×86×11.5mm(without base)
●Including base: 86×86×38.8mm
