Description
- Hign-concerned Chemical: None
- RGB Support: NO RGB
- Hot-Swap Drive Bays: 8
- Internal 2.5″ Drive Bays: 8
- Internal 3.5″ Drive Bays: 8
- Max CPU Cooler Height: 70mm
- Case Weight: 5.0kg

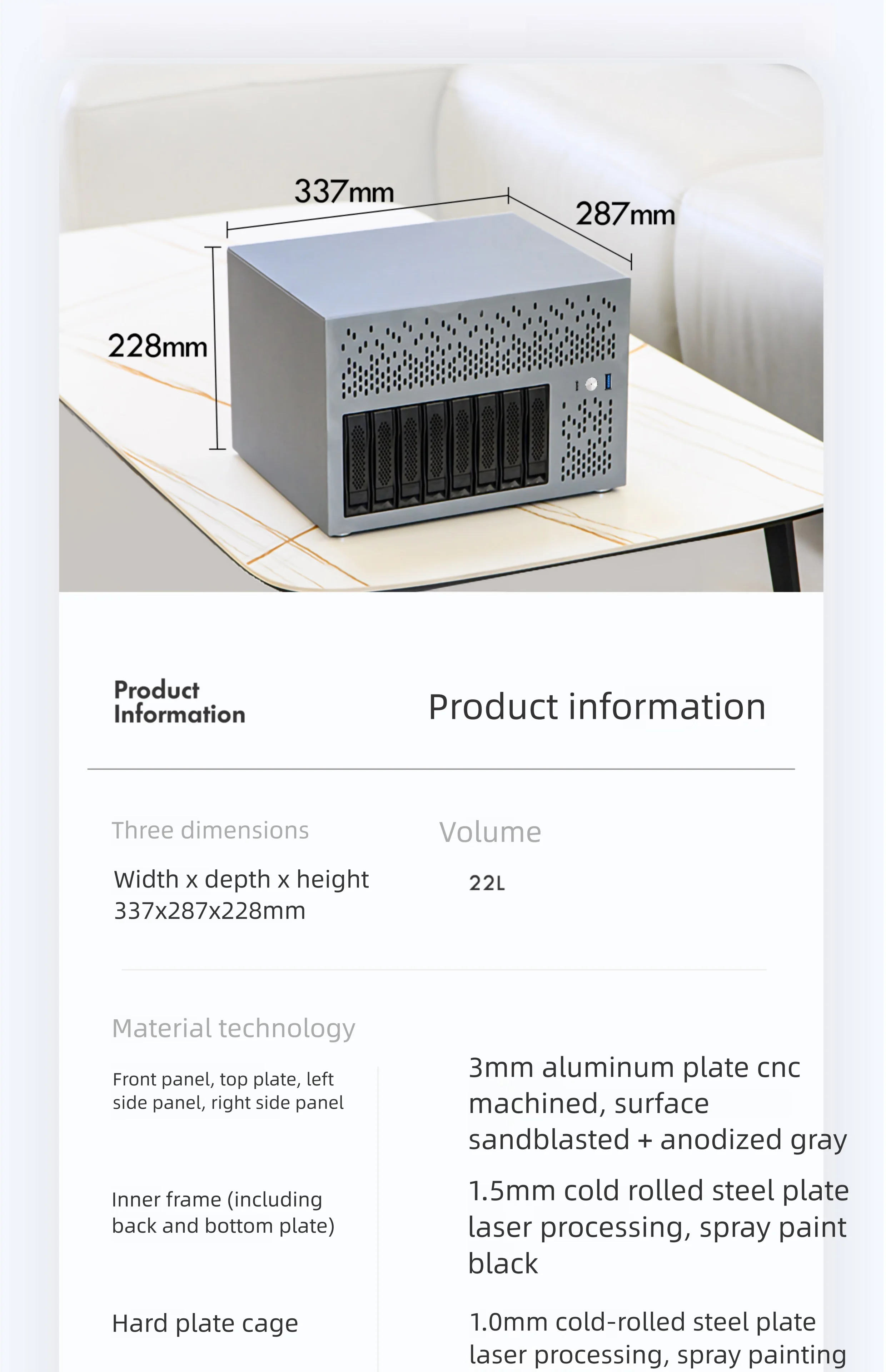

- Case Size: 337mm*287mm*228mmcm
- Power Model: SFX
- Chassis Type: Desktops
- Front Ports: USB 3.0
- Application: Desktop
- Form Factor: ATX,MicroATX,ITX

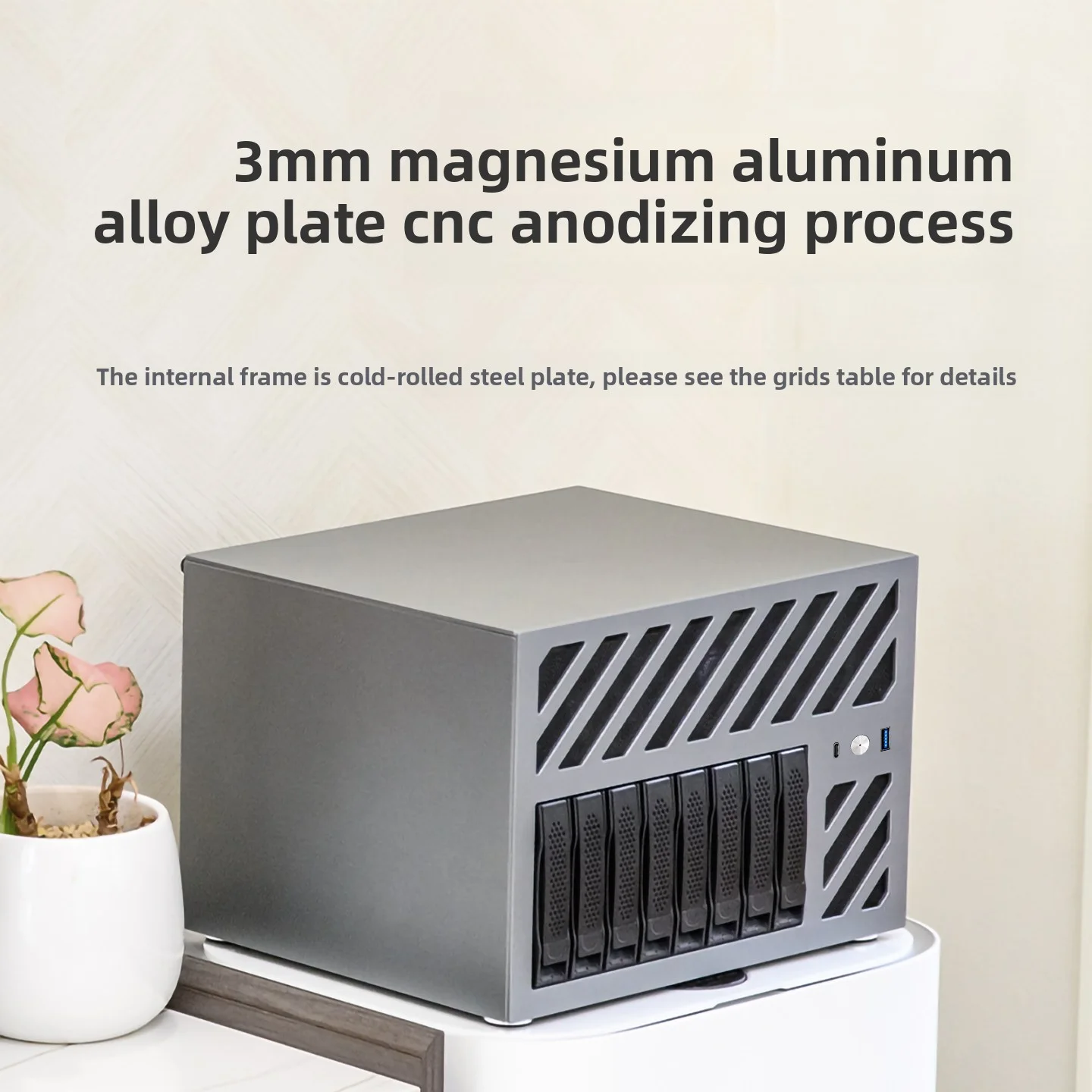

- Material: Aluminum alloy

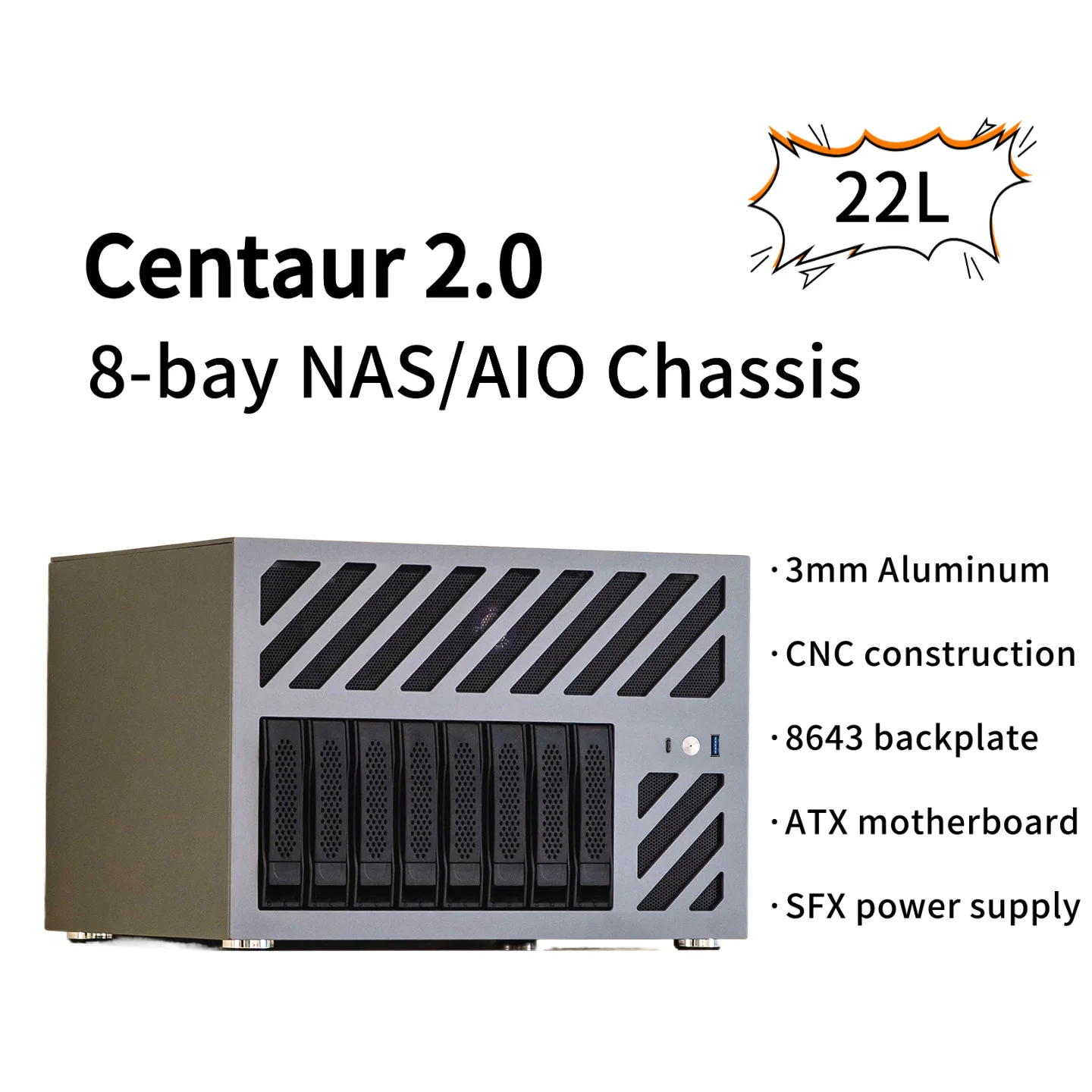

- Model Number: Centaur 2.0
- Type: Horizontal
- Brand Name: VBNM

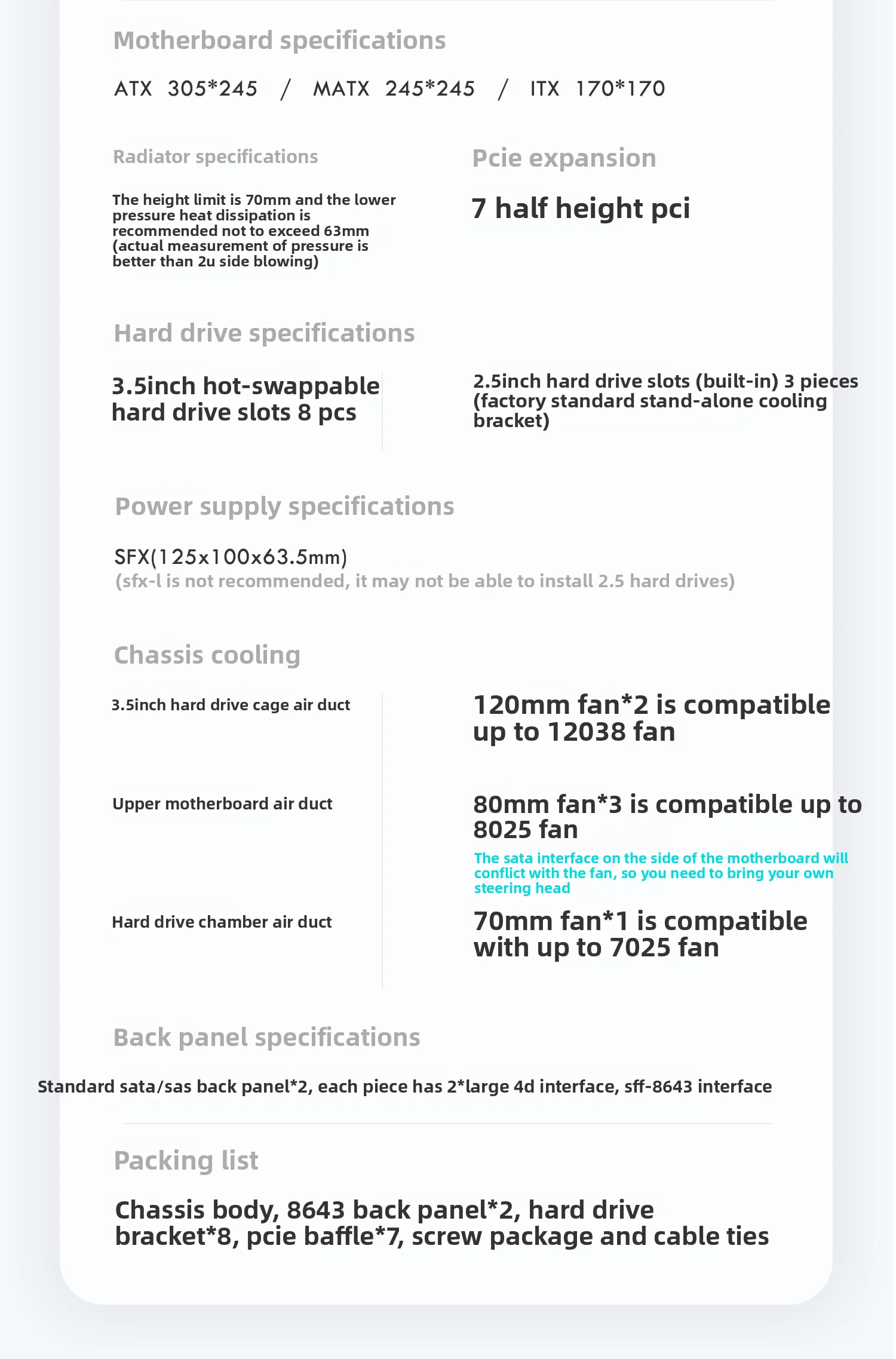

Product Information

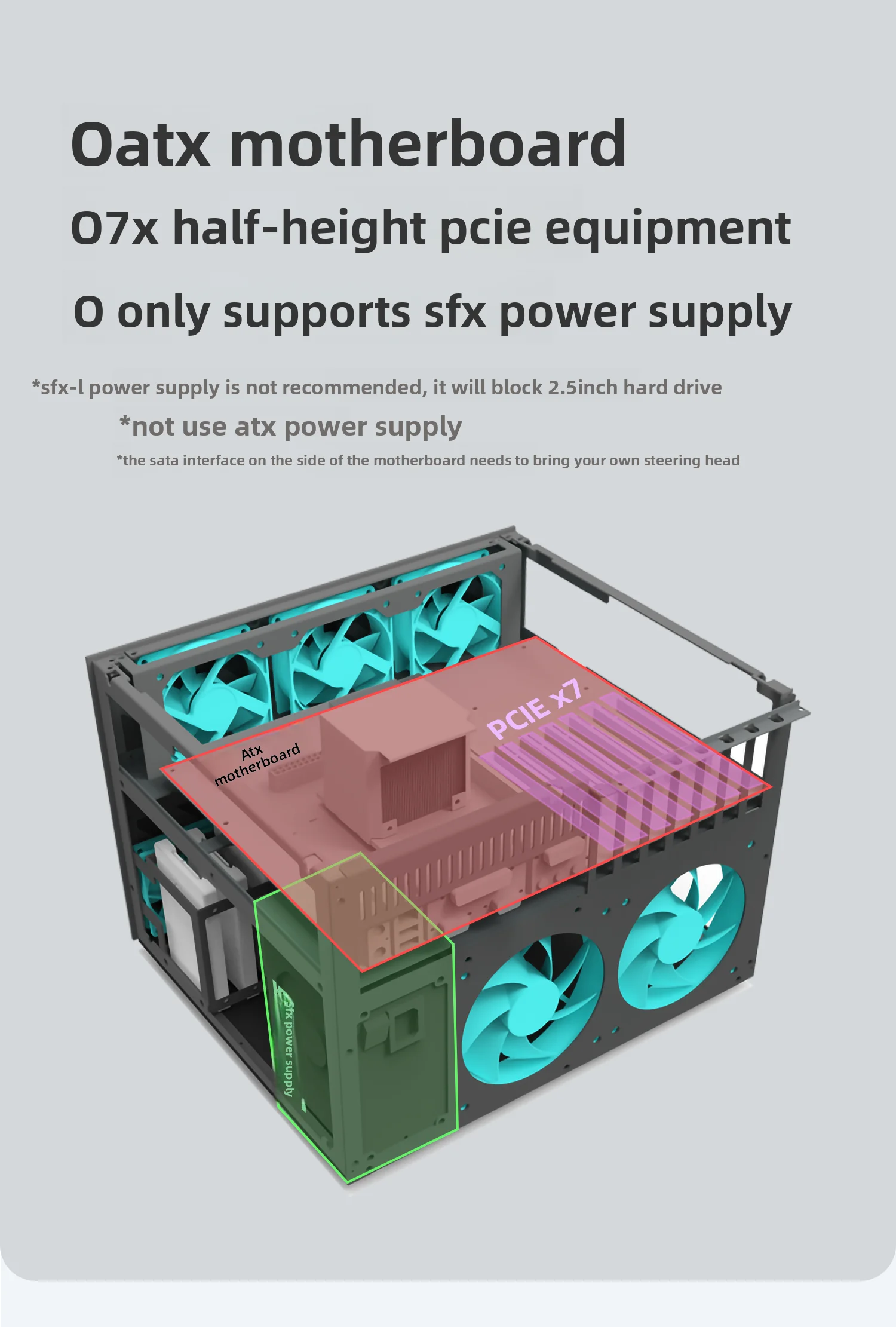

Motherboard specifications: ATX 305*245 / MATX245*245 / ITX170*170

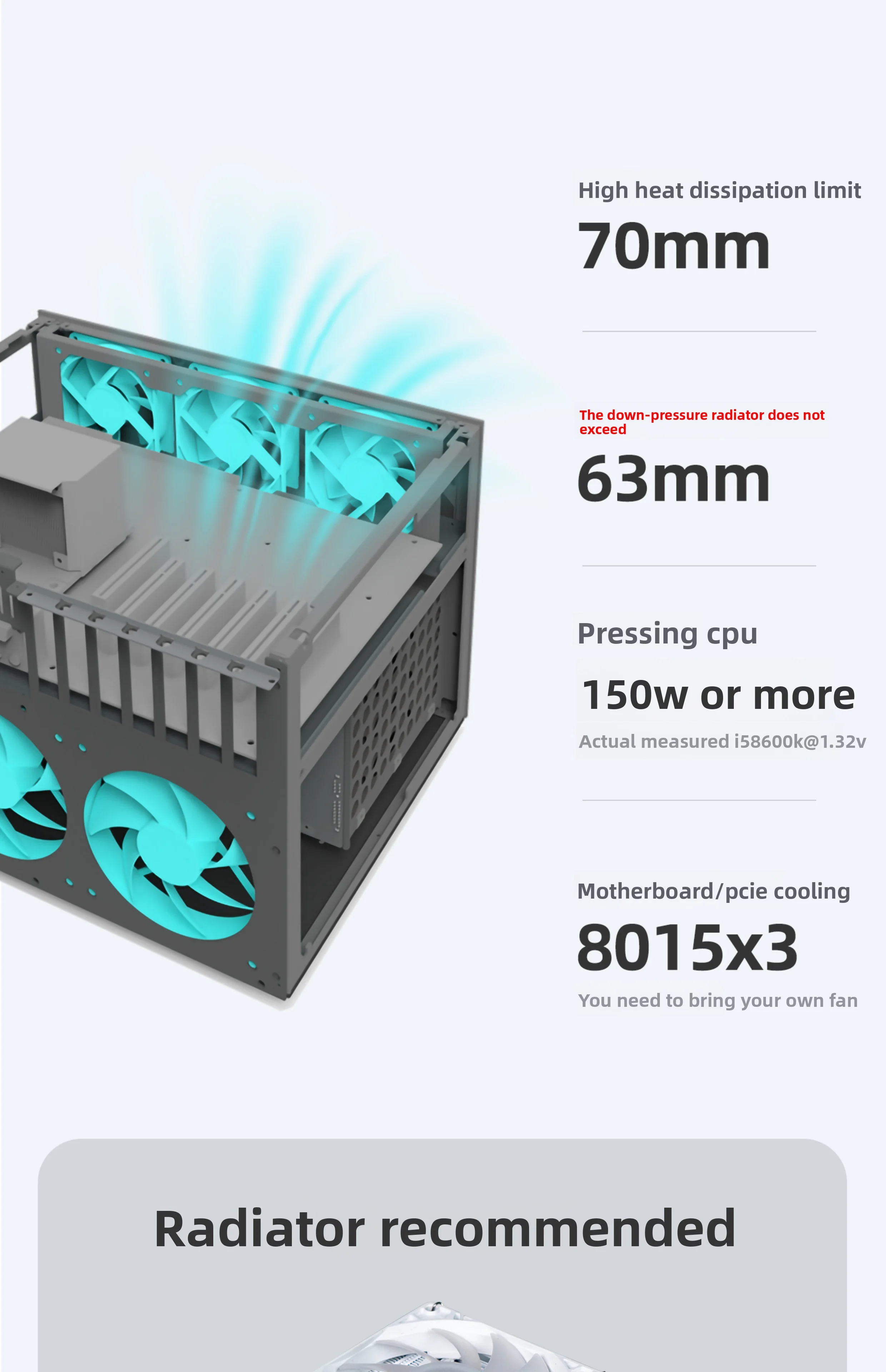

Radiator specifications: Maximum height 70mm, downward pressure heat dissipation is recommended not to exceed 63mm (actual downward pressure is better than 2U side blowing)
PCIE expansion: 7 half-height PCIe slots

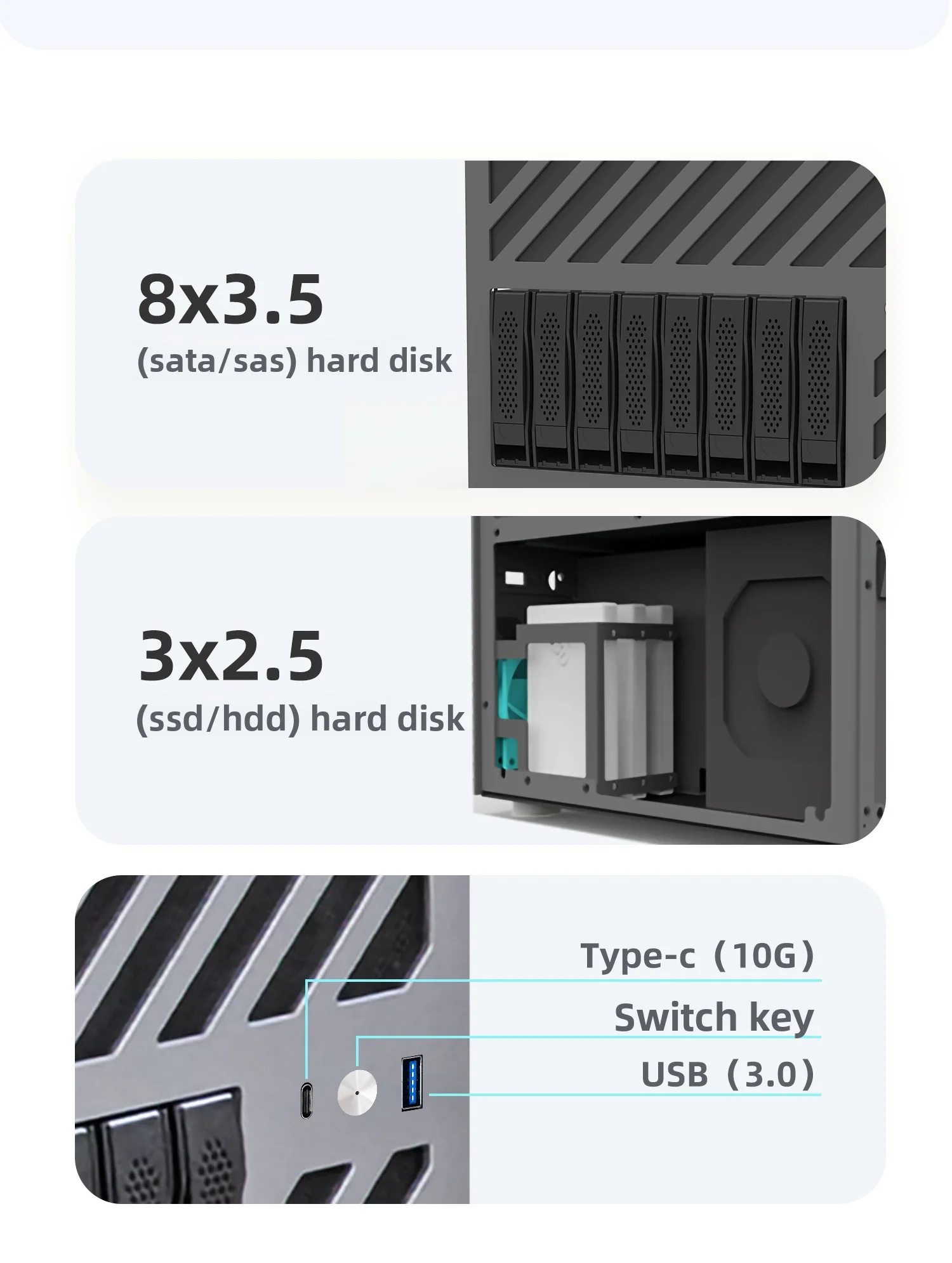

Hard drive specifications:
(1) 8 3.5-inch hot-swappable hard drive slots
(2) 3 2.5-inch hard drive slots (built-in) (factory standard vertical heat dissipation bracket)
Power supply specifications: SFX (125x100x63.5mm) (SFX-L is not recommended, as it may result in the inability to install a 2.5 hard drive)

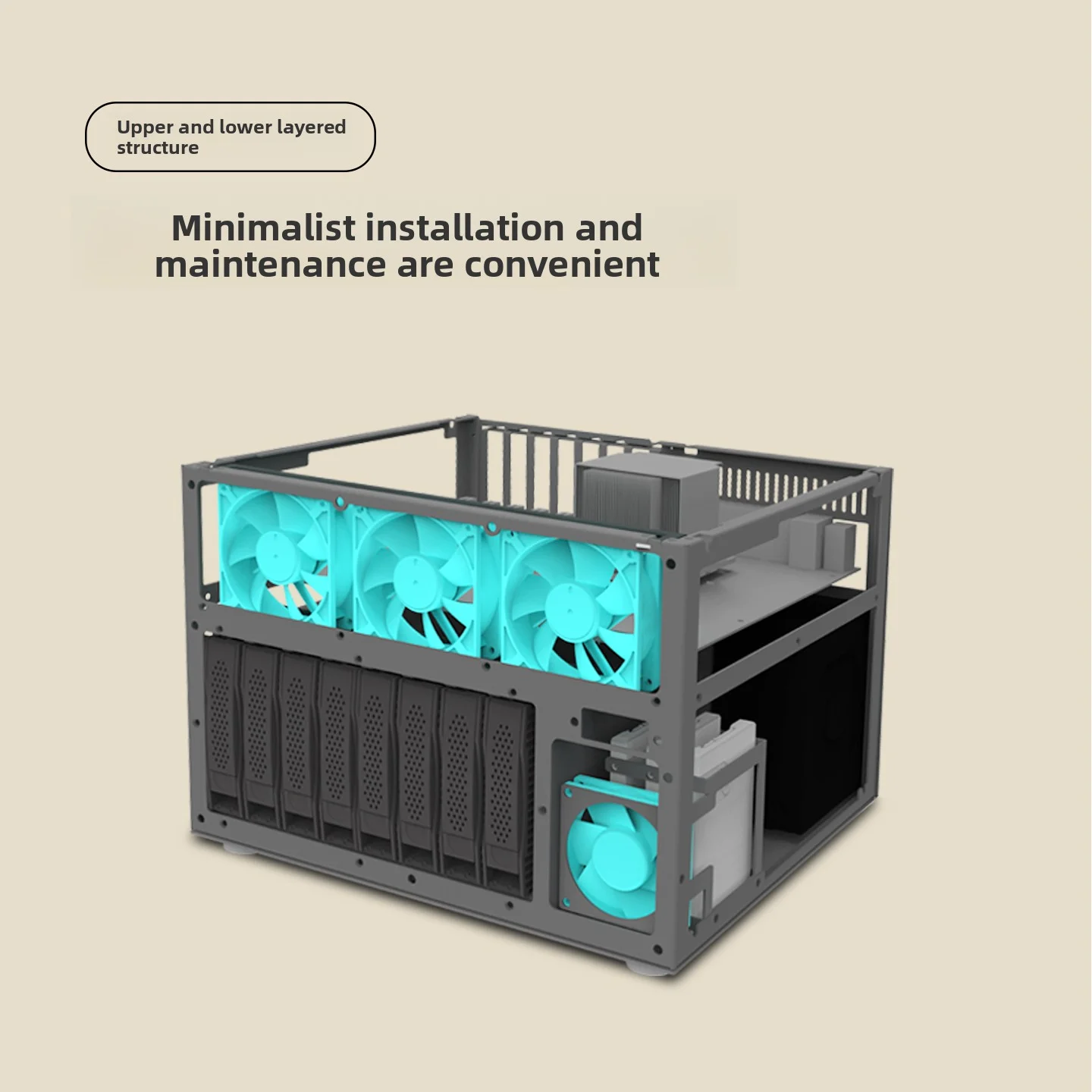

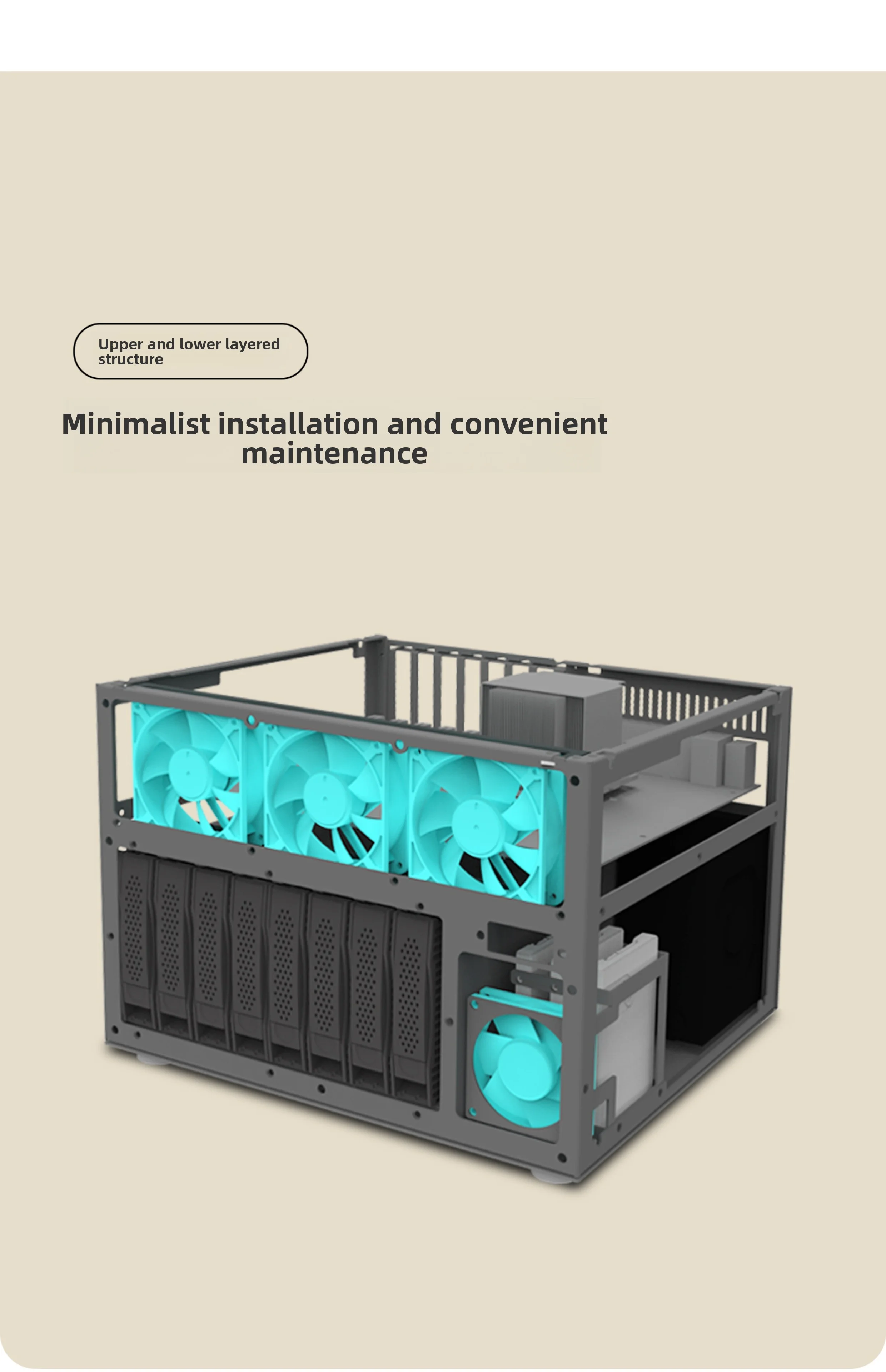

Chassis cooling:

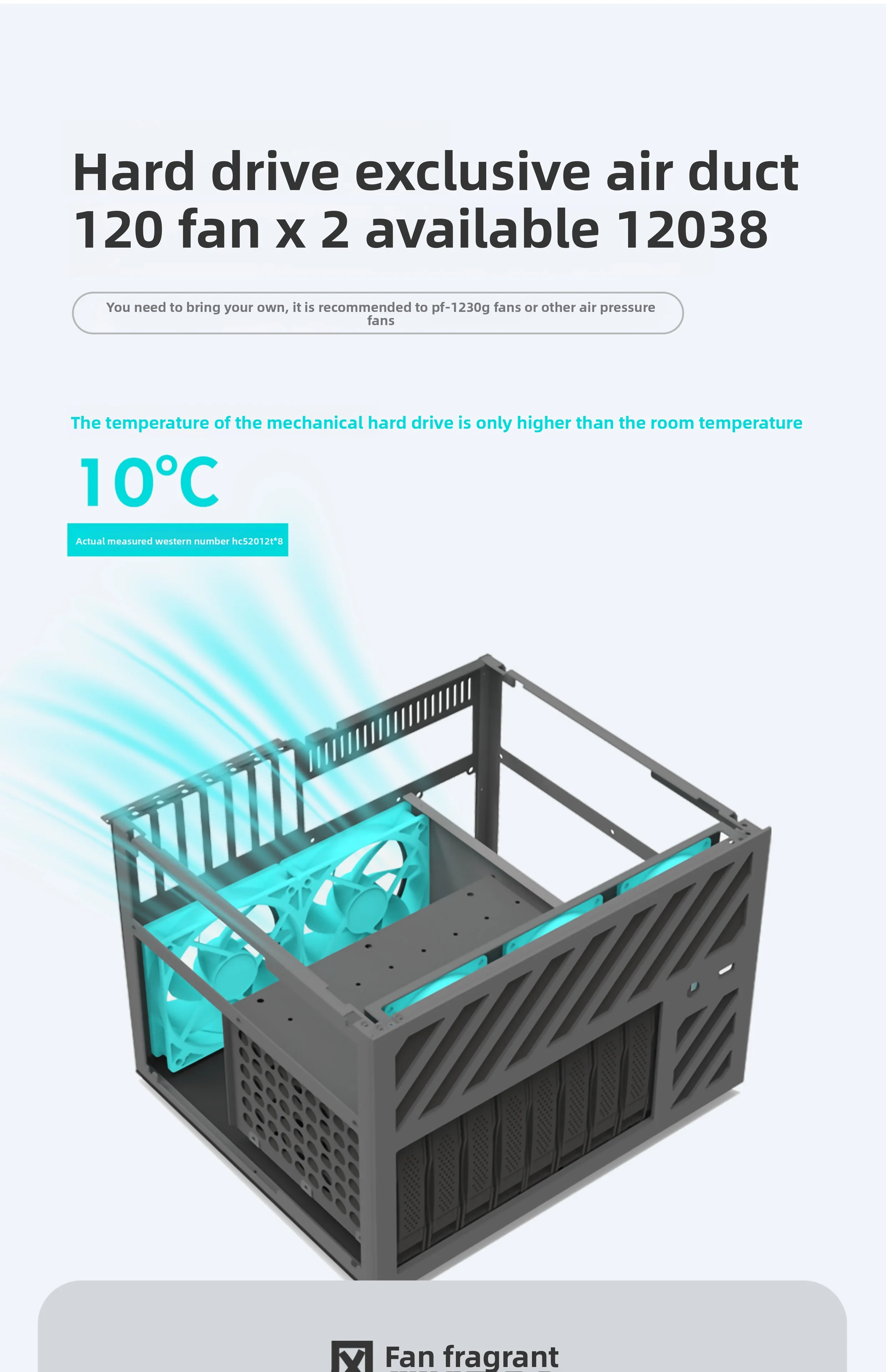

(1) 3.5-inch hard drive cage air duct: 120mm fan*2, compatible with up to 12038 fans
(2) Upper motherboard air duct: 80mm fan*3, compatible with up to 8025 fans
The motherboard side SATA interface will conflict with the fan, so you need to provide your own steering head
(3) Hard drive bay air duct: 70mm fan*1, compatible with up to 7025 fans

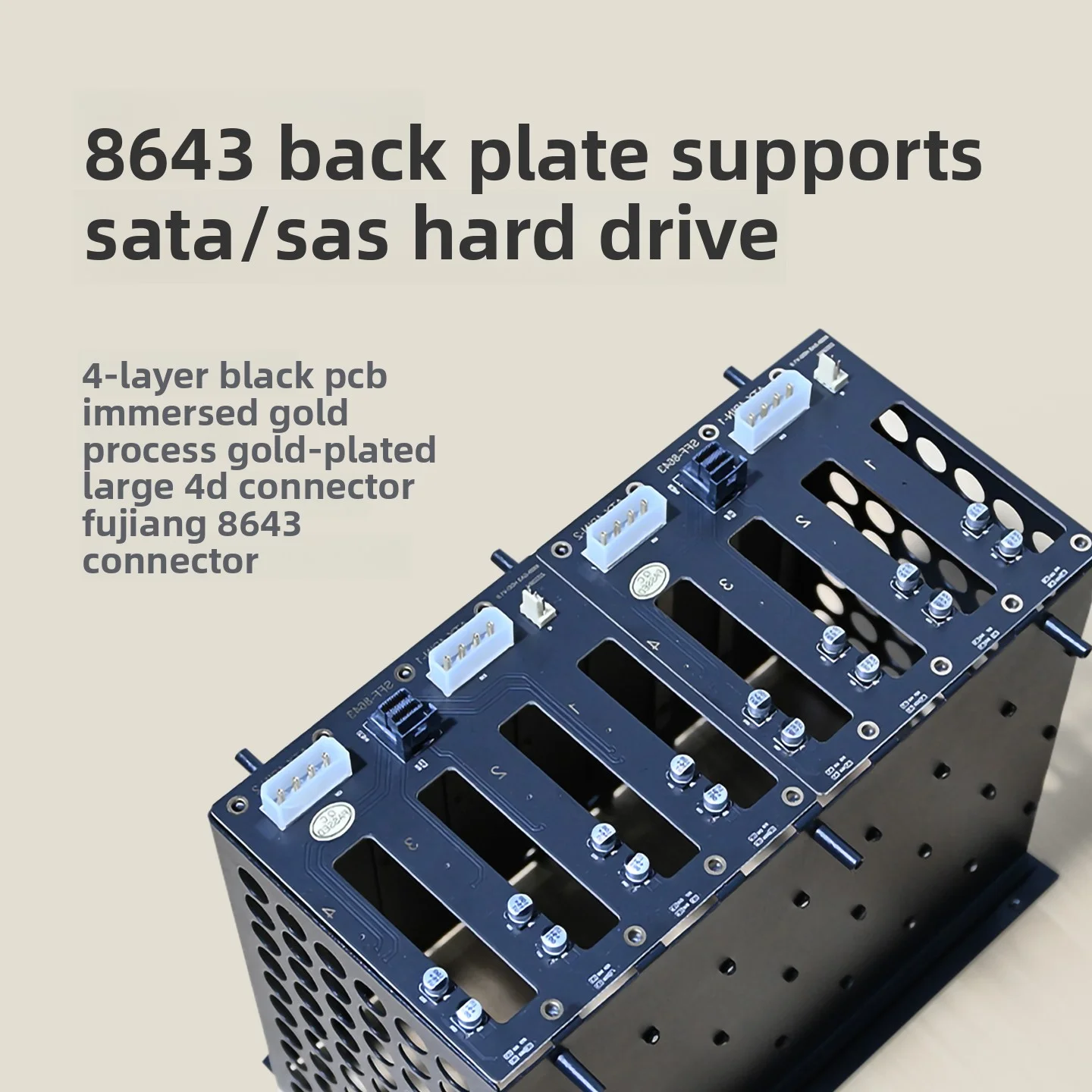

Backplane specifications: Standard SATA/SAS backplane*2, 2*large 4D interfaces per piece, SFF-8643 interface
Packing list:

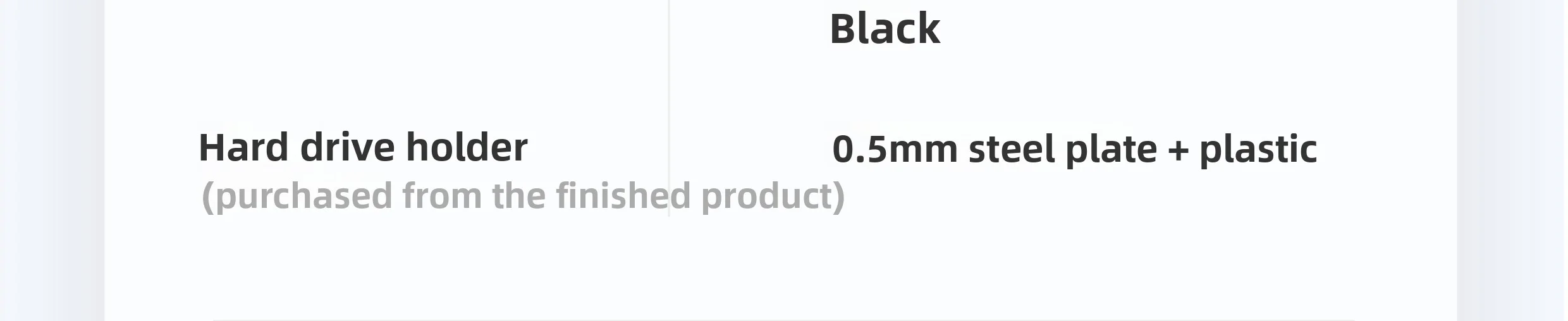

Chassis body, 8643 backplane*2, hard drive bracket*8, PCIE baffle*7, screw pack and several cable ties
