Tesla Coil HF HFSSTC Electronic Candle HF Plasma Flame DC36-40V 2A Technology Lab Teaching Model

Description

Product Information:

Name：HFSSTC Tesla Electronic Candle

Working Frequency：15MHZ or so

Working voltage: 36-40V 2A

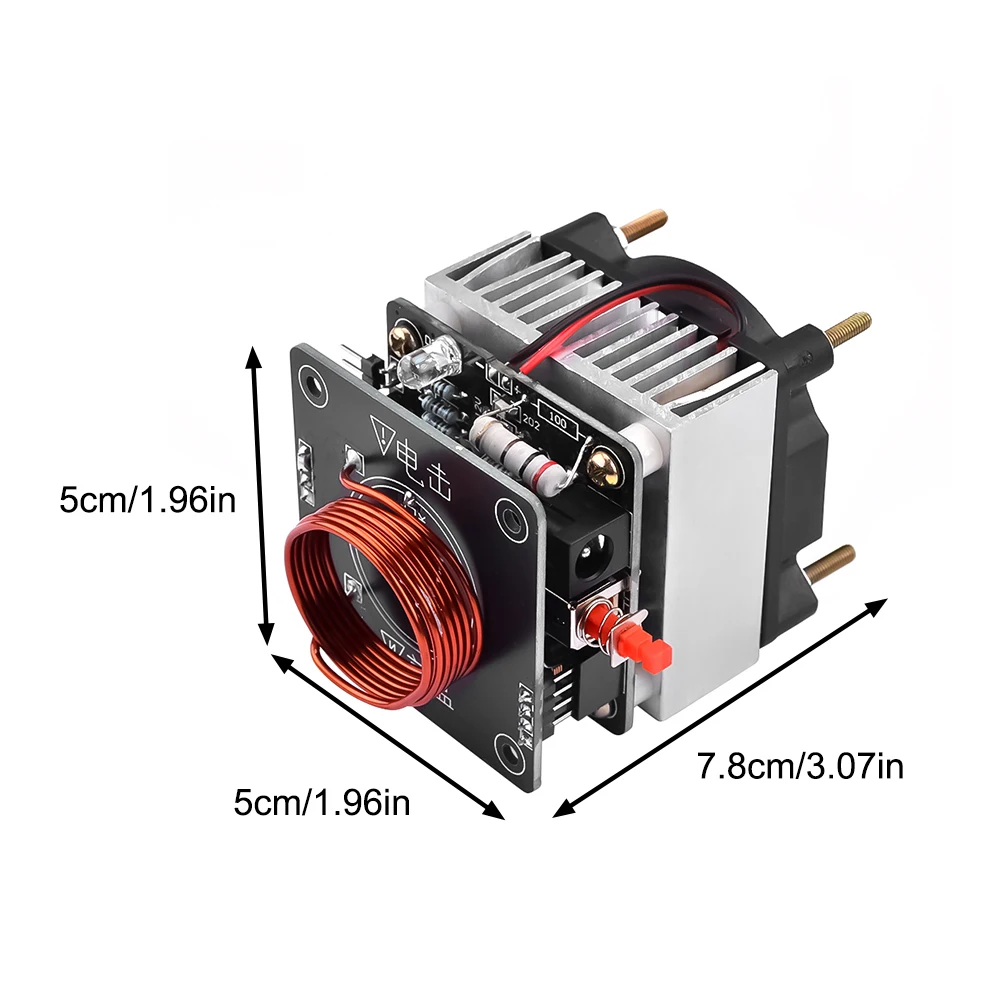

Product size: Length 5CM*Width 5CM*Height 8CM(without secondary ignition coil)

Secondary ignition coil material: ceramic

Secondary coil: 0.3 enamelled wire * 65 turns

Running time: tested continuous work can be more than 30 minutes;

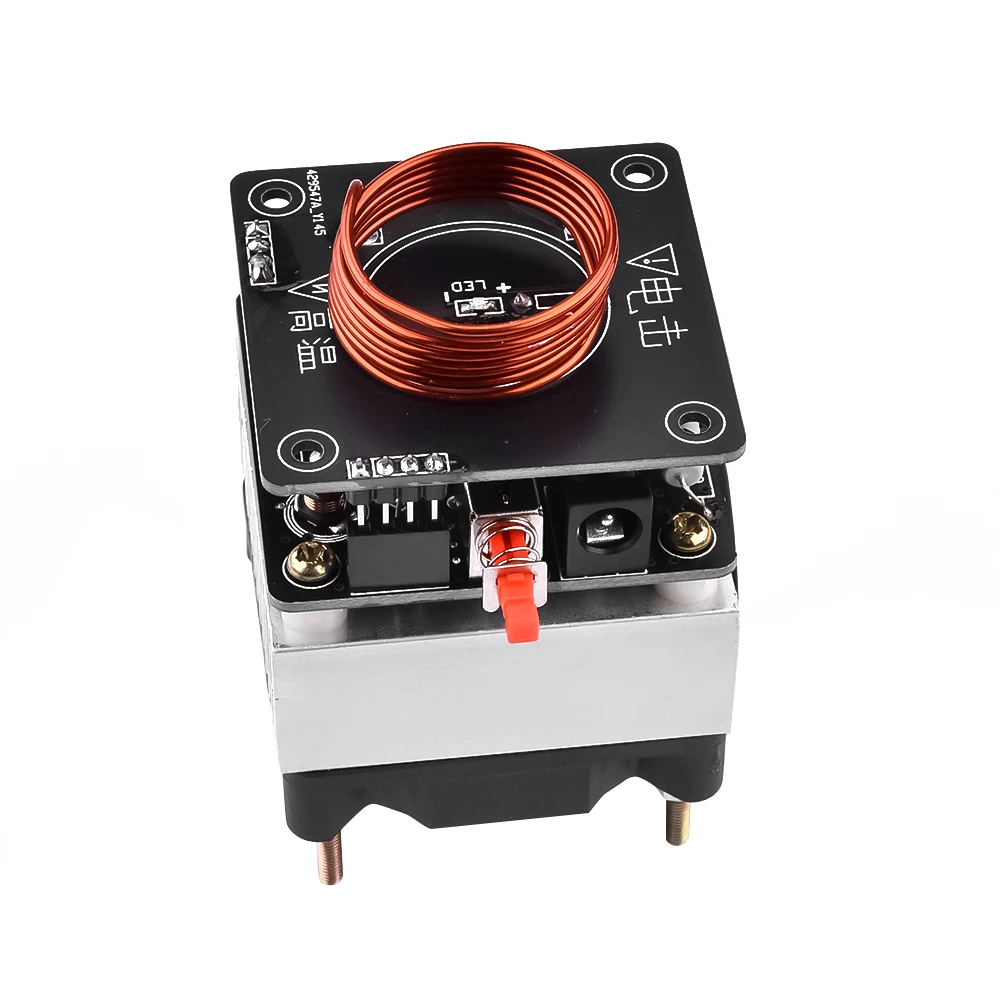

Tesla plasma accessories: primary coil, PCB upper board (welded 0805 LED red), PCB lower board, 6.2K resistor, secondary coil (ceramic core, wound), 24V fan, 5CM * 5CM heat sink, M3 * 50 screws (diameter 3mm length 50mm), 5MM ABS spacer columns, elongated row of half of the pin, 2P curved pins, 4P row of the female, 1808 package 15P capacitor voltage 3KV, 102 capacitor package 1206 voltage 1KV, 8 * 12 I-beam inductor 2.2UH, directly inserted beads 3.5 * 0.8 * 9, A03 self-locking switches, DC005 seat, 2W 200 ohm resistor, 5MM LED white green (green), 2K resistors (precision 1%),

3K resistor (precision 1%), IRF250, silicone package

Usage:

1, connect the host and secondary coil;

2, make sure that the secondary coil is not something close before powering on, otherwise after powering on, the secondary coil and the external contact items will directly fire and burn the coil.

3, connect the power supply, turn on the ignition switch (you need to lead the arc out as soon as possible after pressing the ignition switch (within 3 seconds), you can use a screwdriver, razor blade, wire and other metal objects).

Safety Precautions:

1, when the product is working, it is strictly prohibited to touch the ignition coil, host coil, electronic devices (except the ignition switch);

2, in order to ensure safety, when the product is working, the surrounding can not put flammable and explosive substances;

3, the product work, the surrounding electronic equipment may produce electromagnetic interference (15MHZ on the human body has no effect);

4, not suitable for children to play;

Set 1:

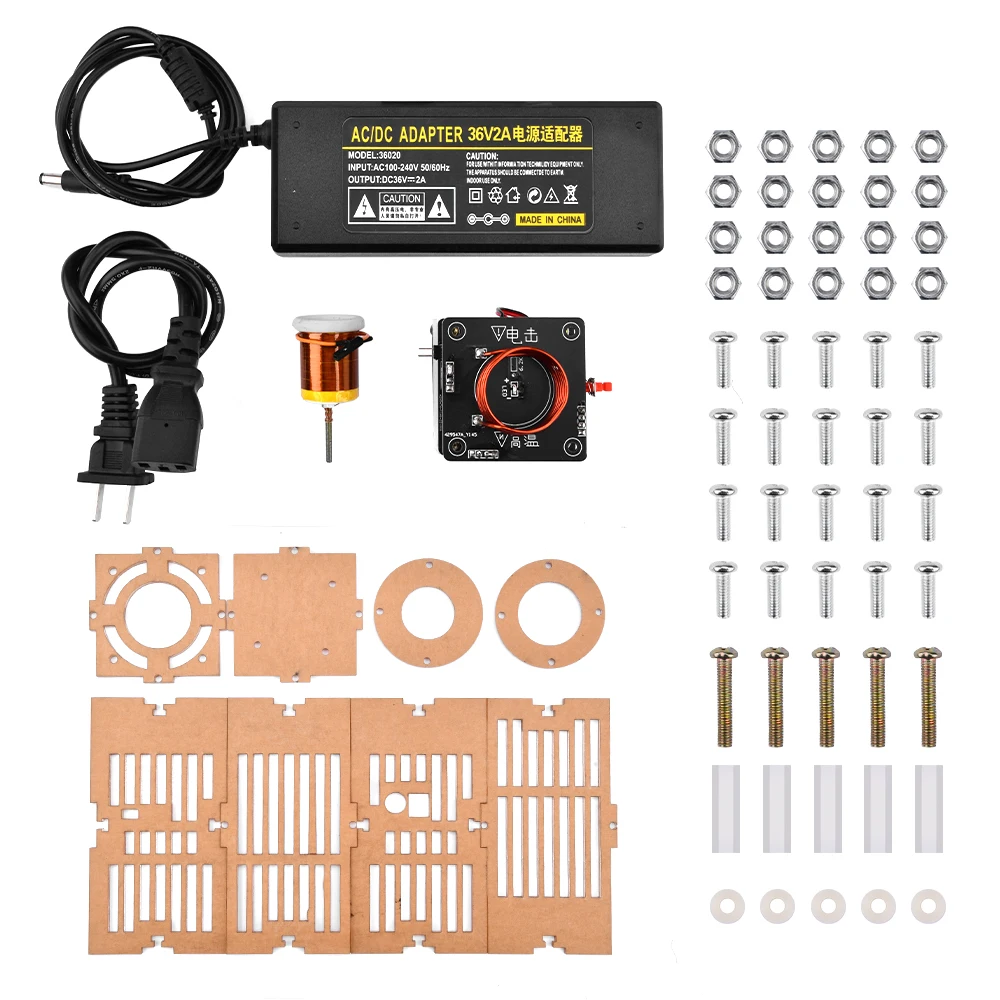

Bulk parts x1

Set 2:

Tesla wire plasma finished product x1

Secondary coil x1

Set 3:

Acrylic enclosure x1 set

Set Set 4:

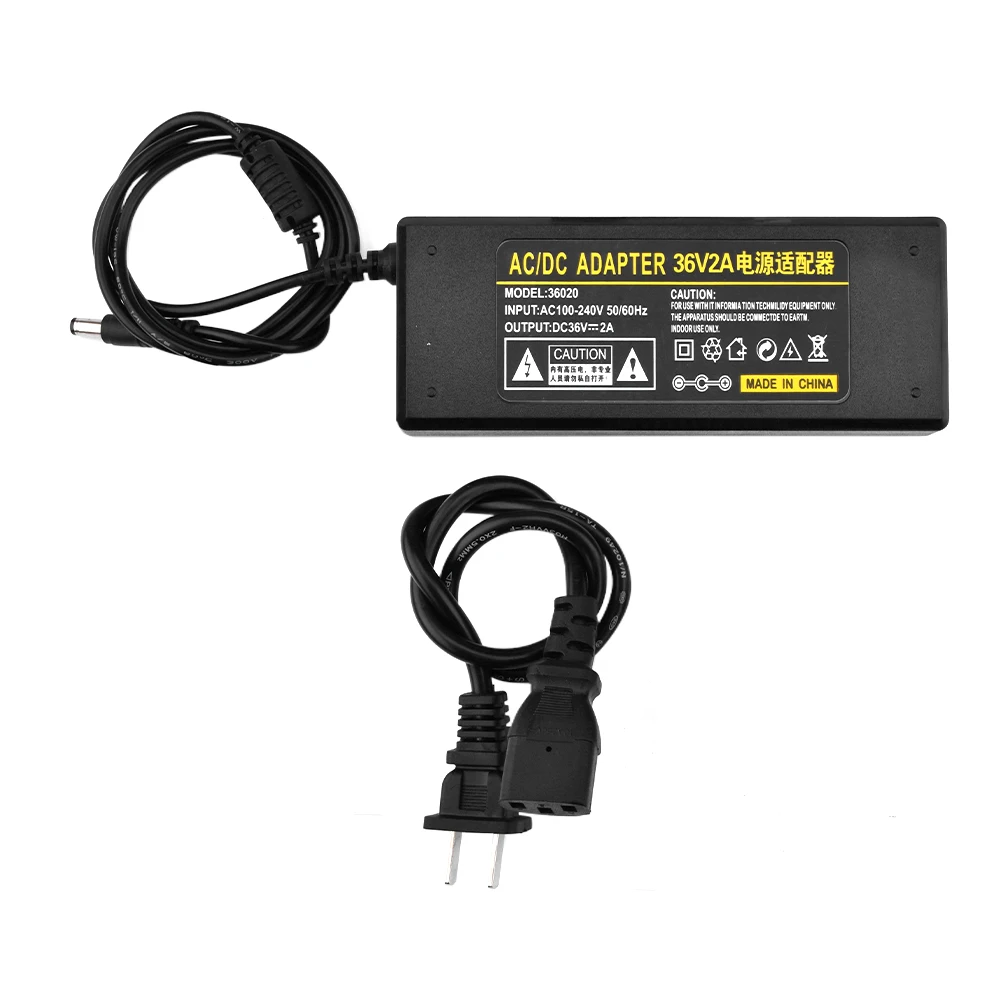

Power adapter x1
