YIHUA 938D Portable Tweezers Soldering Station 110V 220V Soldering Iron Station Chip Desoldering Kit Set SMD Welding Equipment

Price range: 110.73$ through 115.96$

SKU: 1005005115533491 Category:

Description

  • High-concerned chemical: None
  • Is Smart Device: No
  • Dimensions: 37*17.5*8 cm
  • Model Number: YIHUA 938D tweezers Soldering Iron Station
  • Input Voltagle: 110V~240V optional
  • Output Temperature: 200~480
  • Brand Name: YIHUA
  • Temperature Stability: 2 (static state)
  • Certification: CE,FCC
  • Output Voltage: 120W Soldering Iron Station




Pre-sale Notice:please check the corresponding voltage of plug before make the payment

US: 110V 60hz

EU: 220V-240V 50hz

AU: 240V 50hz

UK: 230V 50hz

The seller recommends a voltage plug for reference only

Europe :plug EU: 220V-240V 50hz

USA/Mexico/Canada:plug US: 110V 60hz

Republic of Korea: plug EU: 220V-240V 50hz

Australia: plug 240V 50hz



Welding two soldering joints by once, double efficiency


Model: 938D (Portable)
Parameter:
Maximum power: 240w
Rated power: 44w
Main unit dimensions: L138xW51xH33mm ±5mm
operating ambient temperature: 0℃~40℃/32°F~104°F
Temperature range: 200℃~480℃/392°F~896°F
Display: LED Nixie Tube
Tip to ground resistance: <2 Ohms

Function:

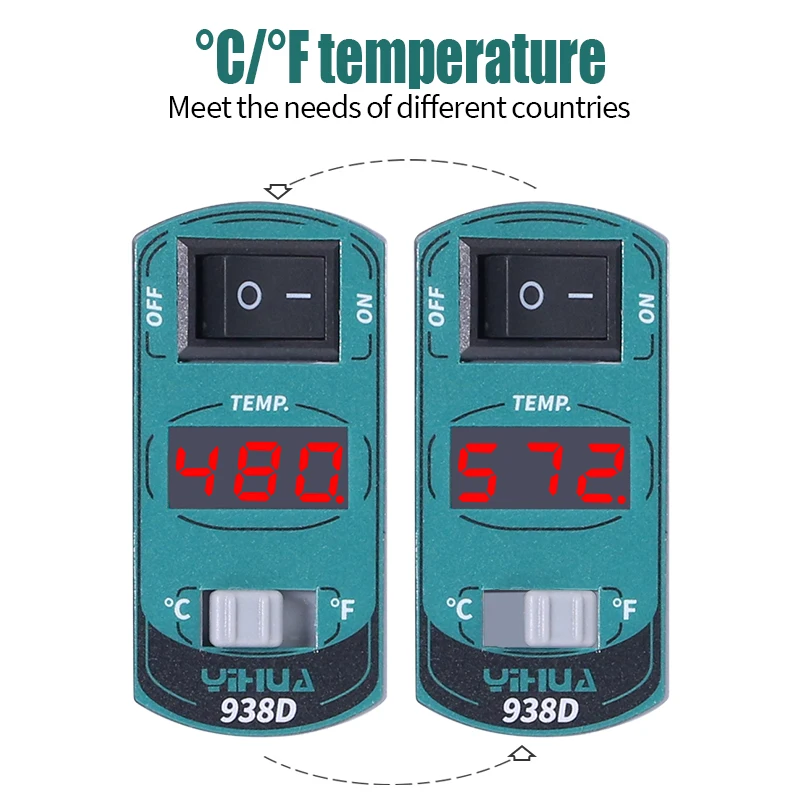

1. Fahrenheit/Celsius temperature conversion, satisfy the different need

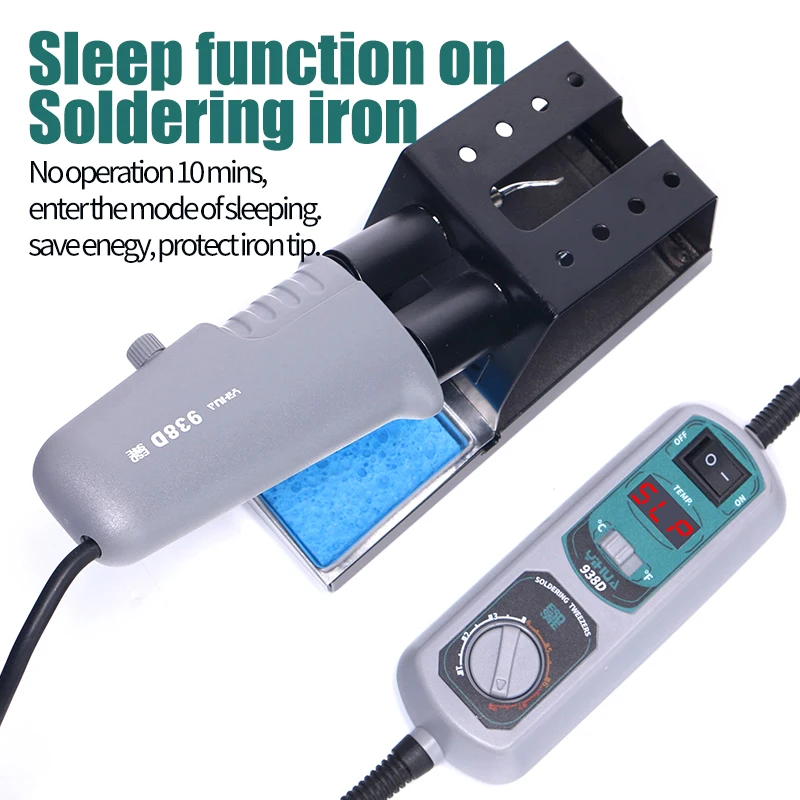

2. 10 mins auto-sleep, ensure safety, reduce the possibility of tips oxidation, prolong the use life of tips

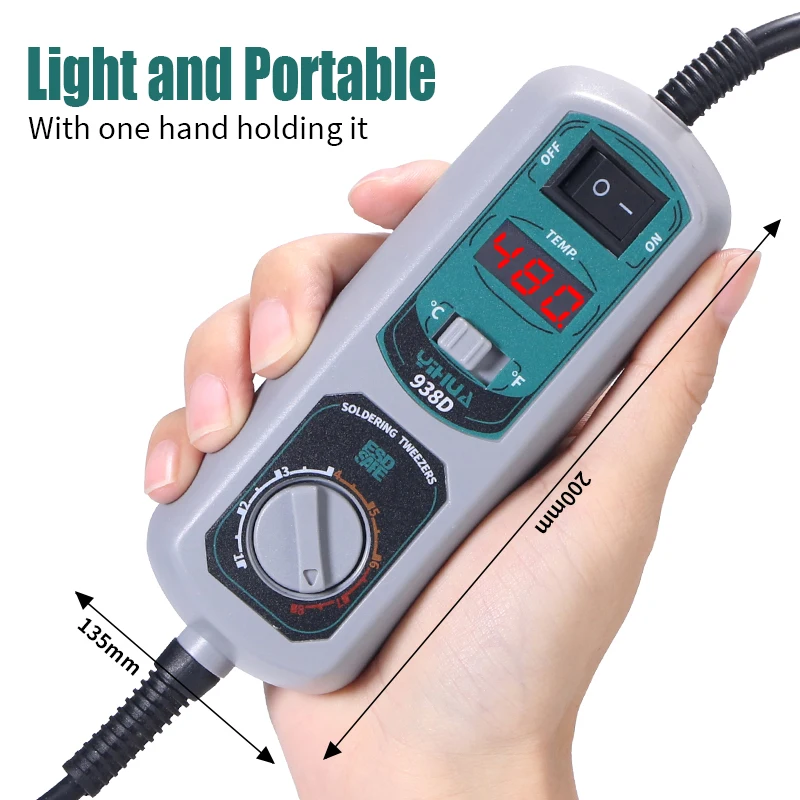

3. light and portable, with one hand to handle it

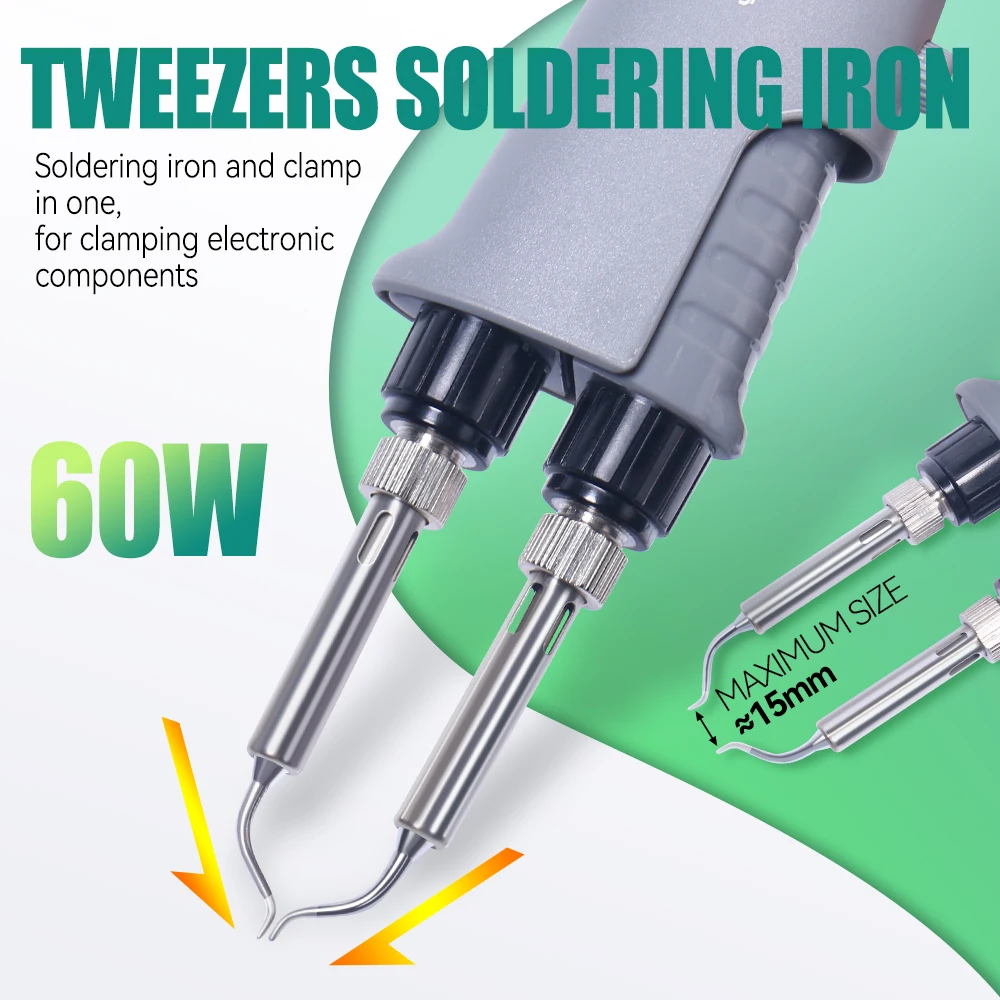

4. heating up fast, 60W heating element,100-480 °C

5. more precise, PID microcomputer temperature control

6. energy-saving, 10 mins iron sleep


How to use:

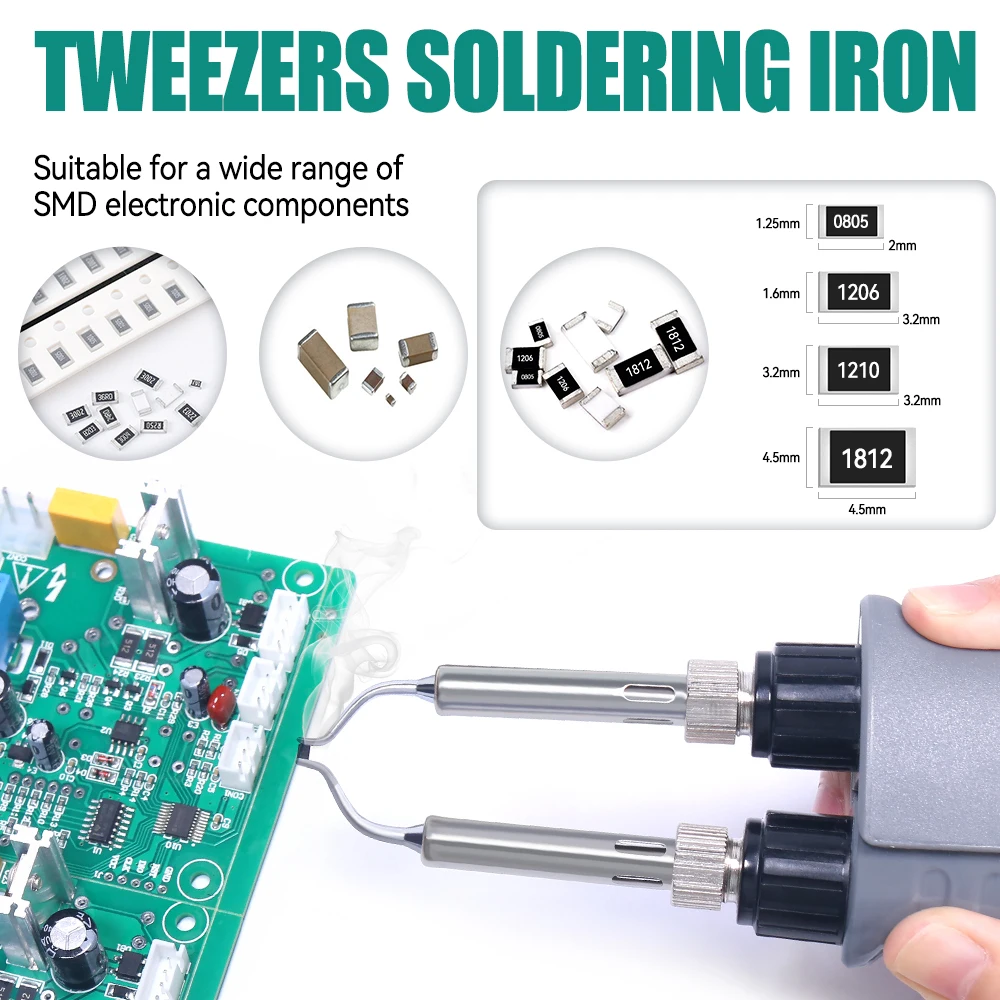

Suitable for soldering and desoldering applications on a broad range of SMD and Through-Hole components. This unit is especially great for manufacturing assembly lines, 2 solder joints can be worked on at the some time to provide high operation efficiency.

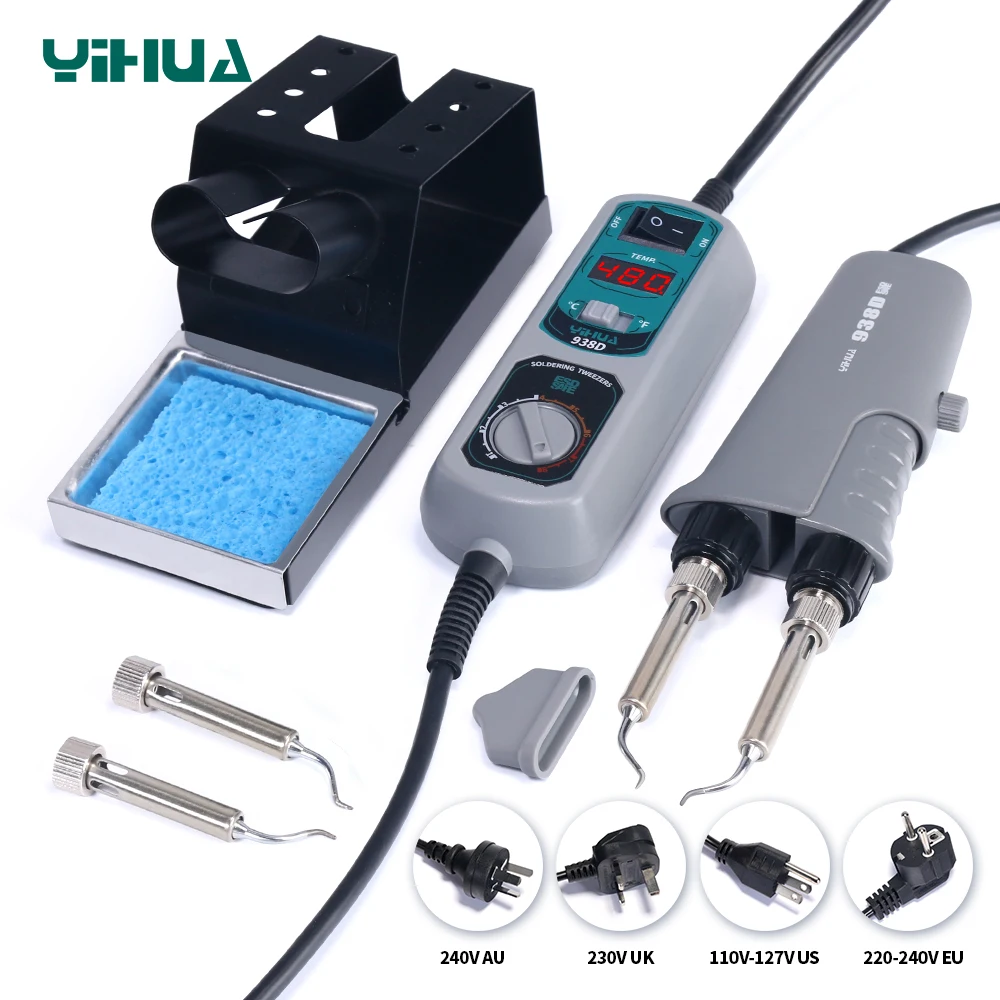

What’s in the box:


1. YIHUA938D Portable electric soldering iron

2. Tweezer soldering iron tips (1 pair)

3. Cleaning ball 08B (1 pcs)

4. Tubular soldering wire (1.0mm) (1 pcs)

5. Tweezer (1 pcs)



Q&A

1. Why can’t the left and right soldering iron tips align

Because your installation method is incorrect, please follow the video for installation
Can follow the video to correct


2. The volatge of soldering iron 938D

US: 110V

EU: 220V-240V

AU: 240V

UK: 230V
